重載彎板滾子鏈

http://www.pearlty.cn/uploadfiles/211.149.195.244/webid148/source/201507/20320.jpg

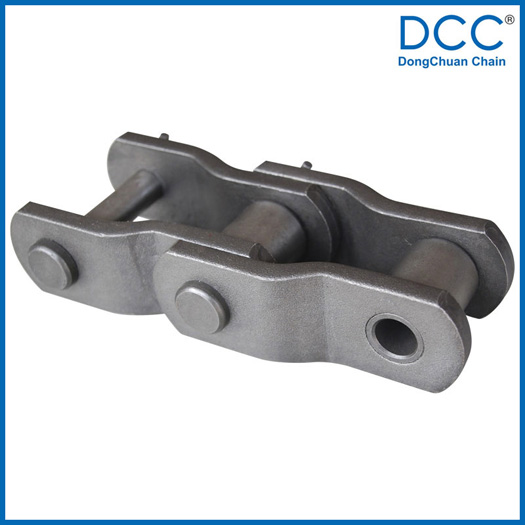

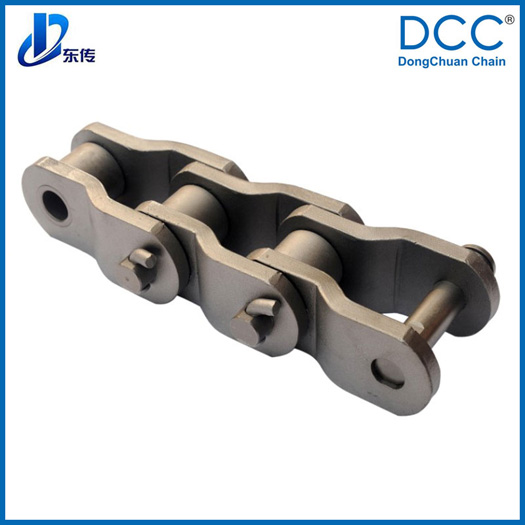

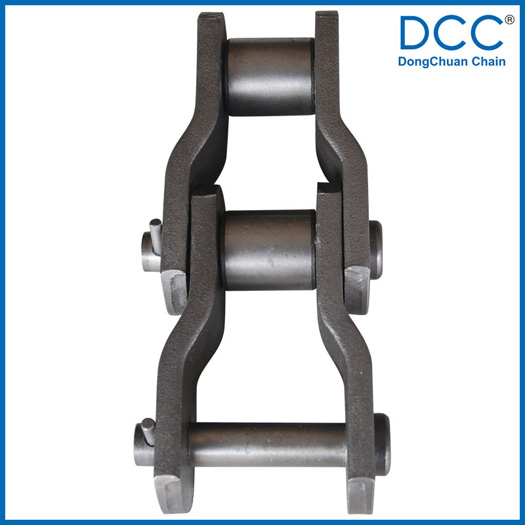

重載彎板滾子鏈
東傳全國咨詢熱線：
0519-88710908

詳細描述：

重載彎板滾子鏈適用領域：鋼廠、礦山、糧食機械。

主要用于傳動和牽引作用。鏈條需具有較高的強度，耐沖擊和較好的耐磨性，鏈條鏈板為彎板結構，鏈條選用中碳合金鋼材質，采用加熱紅壓和退火后冷壓兩種工藝，鏈板節距孔通過沖擠工藝，提高了孔徑的光亮帶長度，增加了鏈板和銷軸間的配合面積，提高了銷軸與鏈板的脫出力。鏈板經整體熱處理，提高了鏈板的強度，銷軸采用整體熱處理后表面高頻處理的熱處理工藝，提高銷軸的強度也使得銷軸表面有較高的硬度，提高了銷軸的耐磨性，套筒選用表面滲碳的工藝，使套筒芯部具有較高的韌性而表面有較高的硬度，提高了套筒的抗沖擊能力，滾子為整體熱處理。

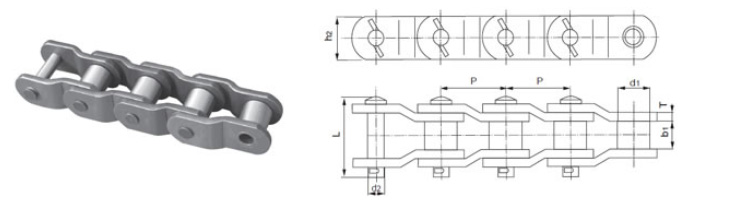

重載彎板滾子鏈規格參數圖

Chain No.	Pitch P (mm)	Inner width of inner link plate b1 (max.) (mm)	Diameter of roller d1 (max.) (mm)	Height of sidebar h2 (max) (mm)	Thickness of sidebar T (mm)	Length of pin L (max.) (mm)	Diameter of pin d2 (max.) (mm)	Tensile strength Q (min.) (KN)	Weight per meter q (kg)
DC2814	88.9	38.1	44.45	63.5	14.27	118	23.81	630
DC4824	152.4	76.2	76.2	115	25.4	220	42	1900
DC0635	114.3	50.8	57.15	76.2	14.2	133.9	27.94	760
DC6042C	152.4	76.2	76.2	101.6	19.05	186	38.1	1400
DC1037	78.1	37	31.75	43	8.7	95	16.5	294
DC1245	103.45	47.8	45.2	60	14.2	128	25.4	550
DC1538	77.9	38.1	41.4	57.2	9.7	97	19.05	340
DC4014	103.2	50.8	44.45	57.2	12.7	127.14	22.1	430
DC W140	139.7	86	65.2	90	20	190	37	1200
DC3315	103.45	49.3	45.2	60	14.2	132	25.4	550
DC6065C	152.4	76.2	75.92	120.65	19.05	184	44.4	2268
DC103.2	103.2	49.2	46	60	13	123.2	23	539
DC1031C	78.1	36.83	32	38.1	8	88.2	15.77	109
DC10199	101.6	58.7	57.15	76.2	12.7	133	27.94	850
DC13P	78.1	38.1	31.75	40	9.7	95	16.5	250
DC WTG80	80	38	36	45	10	97	19.05	288
DC4123-A	103.89	49.21	50.8	69.85	14.29	129	25.4	694
DC882	66.27	28.58	22.23	28.4	6.4	67.5	11.1	115.6
DC3500	88.9	38.6	44.45	58	12.7	113.39	22.1	559
DC5031	127	69.9	63.5	88.9	15.88	158.26	3.55	1332.8
DC6042	152.4	74.6	76.2	100	20	182	38.1	1600
DC1244	103.2	48	44.45	55	13	123.5	22	476
DC WG103.2H	103.2	49.2	46	60	16	137.5	24	622.3
DC RO3 1/2	88.9	36.9	31.75	60	13.5	117.6	22.23	556
DC RO3C	78.1	36.9	31.75	45	9.5	95.3	16.5	298.2
2010	63.5	38.1	31.75	47.8	7.9	90.7	15.9	262	14
2510	78.1	31.75	36.9	40	8	94.8	16	271	10.7
2512	77.9	39.6	41.28	57	9.7	103.4	19.08	378	18
2814	88.9	38.1	44.4	60.5	12.7	117.6	22.25	516	25
3315	103.45	49.3	45.24	63.5	14.2	134.6	23.85	596	27
3618	114.3	52.3	57.15	79.2	14.2	141.2	27.97	814	38
4020	127	69.9	63.5	91.9	15.7	168.1	31.78	1054	52
4824	152.4	76.2	76.2	104.6	19	187.5	38.13	1521	68
WG/WB series
WG781	78.18	38.1	33	45	10	97	17	313.6	16
WG103	103.2	49.2	46	60	13	125.5	23	539	26
WG140	140	80	65	90	20	187	35	1176	59.2
WB9525	95.25	39	45	65	16	124	23	635	22.2
WB7900	79	39	31.5	54	9.5	93.5	18.5	381	12.8
WB7938	79.38	41.2	40	57.2	9.5	100	19.5	509	18.7
WB238	88.9	36.8	44.4	57.2	12.7	113.4	22.15	501.4	25.4
WB1207	127	68.3	63.5	88.9	15.7	158.3	31.75	1044	53.1
