冶煉軋制馱載鏈1

http://www.pearlty.cn/uploadfiles/211.149.195.244/webid148/source/201507/20367.jpg

冶煉軋制馱載鏈1
東傳全國咨詢熱線：
0519-88710908

詳細描述：

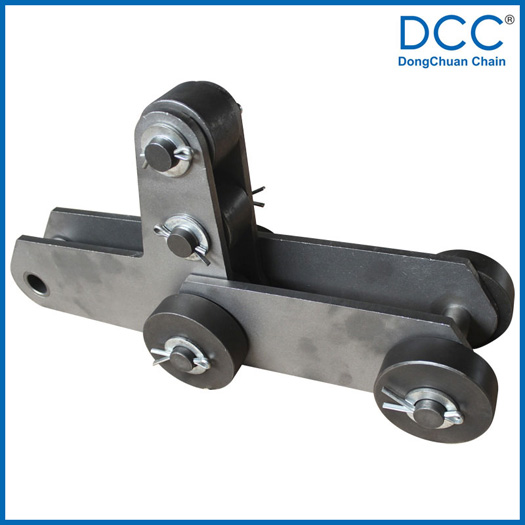

冶煉軋制馱載鏈

This range of conveyor chain is manufactured for metallurgy industry, for instance, in steel mills. To meet the application requirements under severe environments, it is especially crafted to support high load carrying under high temperature conditions. For instance, our alloy steel chains for heavy duty uses adopt special bearings as the rotational part, so as to ensure increased load carrying capacity and reduced operational risks.

Our conveyor chain supports conveying of steel coils and steel sheets as well as steel rollers. In addition, we can offer metallurgy industry-use chains for material cooling and drying, steel ingot lifting, steel pipe pushing and drawing, as well as more purposes.

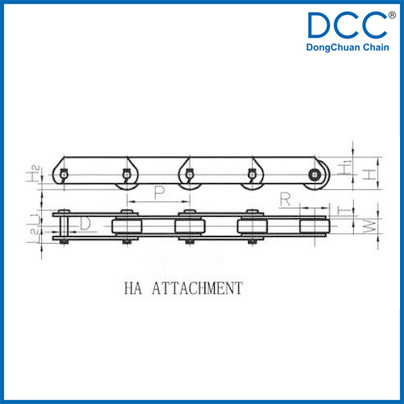

Chain No.	Roller type	Pitch P (mm)	Inner width of inner link W (mm)	Diameter of roller R (max) (mm)	Height of chain H (mm)	Data of sidebar				Data of pin			Tensile strength Q (KN)
Chain No.	Roller type	Pitch P (mm)	Inner width of inner link W (mm)	Diameter of roller R (max) (mm)	Height of chain H (mm)	H1 (mm)	H2 (mm)	T (mm)	B (mm)	L1 (mm)	L2 (mm)	D (mm)	Tensile strength Q (KN)
W03075	R	75	16.1	31.8	36.9	21	4.9	3.2	50	18	20	7.92	30
W03100	R	100	16.1	31.8	36.9	21	4.9	3.2	50	18	20	7.92	30
W07100	R	100	22	40	44	24	4	4.5	68	24.5	29	11.1	70
W07150	R	150	22	40	44	24	4	4.5	68	24.5	29	11.1	70
W08150	R	150	27	44.5	50.3	28	8	6.3	80	31	35	11.1	80
W11150	R	150	30	50.8	57.4	32	6.4	6.3	90	33.5	40	14.27	115
W11100	R	100	30	50.8	57.4	32	6.4	6.3	90	33.5	40	14.27	115
W19152	R	152.4	37.1	57.2	63.5	35	6	8	105	41.5	47.5	15.9	190
W19200	R	200	37.1	65	73.5	41	10	8	105	41.5	47.5	15.9	190
W19250	R	250	37.1	65	73.5	41	10	8	105	41.5	47.5	15.9	190
W25250	R	250	51.4	80	90	50	13.8	10	122	52	54.5	19.1	250
W25300	R	300	51.4	80	90	50	13.8	10	122	52	54.5	19.1	250
W28200	R	200	49	85	95.5	53	10.5	10	145	52	61	22.2	285
W28300	R	300	57.2	85	95.5	53	10.5	10	145	56	65	22.2	285
W48250	R	250	66.7	110	112	62	12	12.7	170	68	77	25.4	485
W48300	R	300	66.7	100	112	62	12	12.7	170	68	77	25.4	485
W48400	R	400	66.7	100	112	62	12	12.7	170	68	77	25.4	485
W51450	R	450	77	110	125	70	17	16	200	82.5	93	31.8	510
